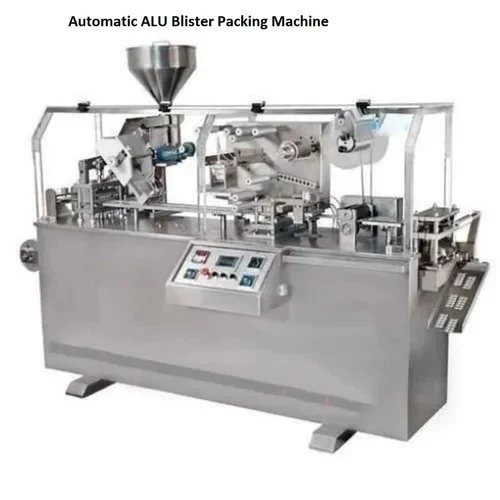

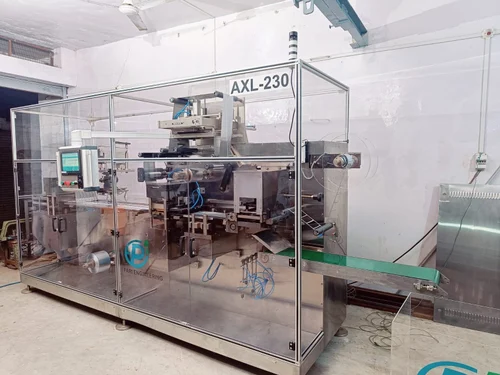

Alu - Alu Packing Machine

Product Details:

Product Type Alu - Alu Packing Machine

General Use Pharmaceutical Industry

Material Stainless Steel

Packing Speed40 Cycles / Min

Machine Description

Model NULL

Minimum Order Quantity 1 Set

Packing Speed 40 Cycles / Min

Machine Specification

TypeAuto & Semiauto

Water Cooler120 Liter/Hour. Temp. 15 ± 2 C

Electrical Power6.5 KW, 415 V ± 10%, 3 Phase + N + E

Size Information

Overall Dimension2900 (L) x 1180 (W) x 1915 (H) mm ±2%.

Net Weight Approx1950 Kilograms

Reel DiameterAlu. 440 mm

Sealing Foil Thickness0.02 - 0.04 mm

Product Description

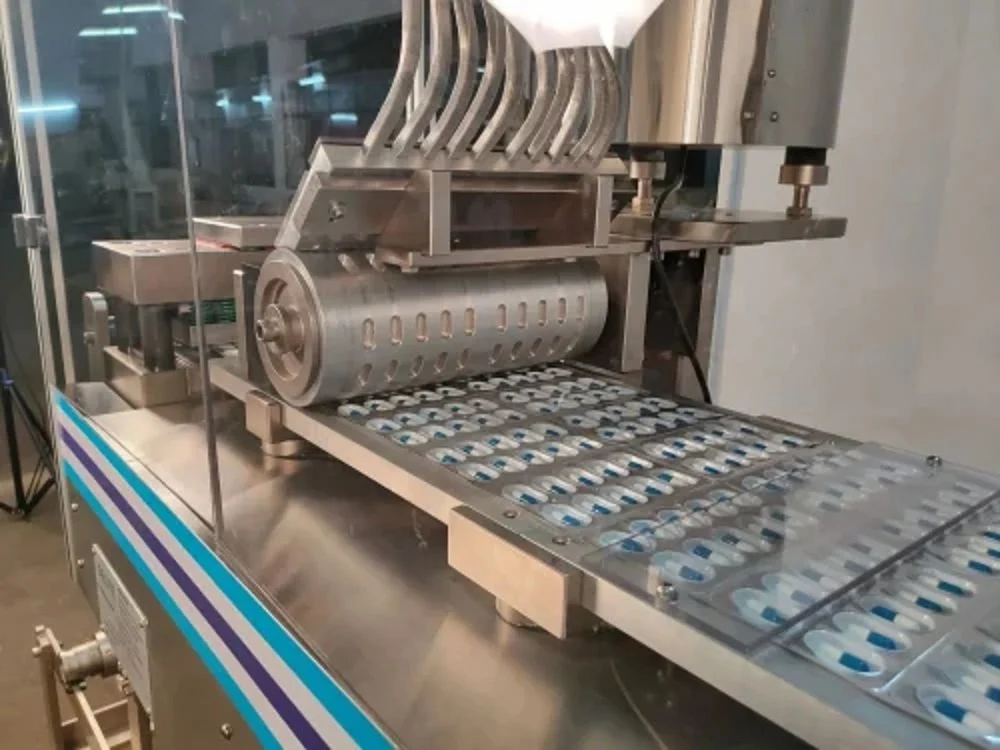

The basic machine body is composed of a mild steel chassis with SS 304 frames that are bolted and welded from a rigid frame device structure. It is designed like a balcony and holds several modular stations. The machine's several stations are managed by a centrally positioned spline shaft that is powered by the main motor. All of the drive components and substantial cabling are housed inside and behind the machine. The machine's feeding and indexing systems are driven by two servo motors. The Product Transfer Roller (PTR) precisely feeds the Alu/Alu Blister.

Special Features

  • Packing Speed: 40 Cycles/min for Thermo-Forming. 35 Cycles/min for Cold-Forming.
  • Feeding System: Auto feeding system by PLC Logic with pneumatic combination.
  • Servo Drive Indexing: Servo web indexing by rigid PLC Logic.
  • Operator Interface: User friendly HMI touch screen (Human machine interface).
  • Pneumatic Operations: Festo make for fast response, oil free, minimum wear and tear, easy maintenance and universal availability of bought outs.

Key Feature Alu - Alu Packing Machine

To facilitate easy sanitization of the entire area beneath the machine, the complete machine is set on the six height-adjustable studs. For the safety of the operator, the machine shall be adequately guarded. The machine's front side provides access to the cantilevered modular stations modifications. With the least amount of tools and tackles, the format parts are incredibly simple to install and remove. With minimal operator fatigue, a full set of changeovers can be completed in less than thirty minutes.
