Products / Pharma & Ayurvedic / Granulation Line /Tray Dryer & Vaccum Tray Dryer Machine

Tray Dryer & Vaccum Tray Dryer Machine

Product Details:

Product Type: Tray Dryer & Vaccum Tray Dryer Machine

General Use: Pharmaceutical Industry

Material: Aluminium

Capacity: 24 Trays

Tray Dryer & Vaccum Tray Dryer Machine Price

Model APM-24

Minimum Order Quantity 1 Unit

Voltage 415 Volts

Machine Specification

Control Mode Automatic

Material Aluminium

Power Source Electricity

Tray Dryer Information

Payment TermsCash Advance (CA)

Supply Ability1 Unit Per Day

Delivery Time 1-8 Week

Main Domestic MarketAll India

Machine Information

Name Values
Internal Dimension (mm) 840x860x840
No of Doors 1
Tray Size 812x406x31
Name Values
Trolly Dimension Fixed Racks
No of Blowers 2
Stream Pressure 3.3 Kg/Cm2

Product Description

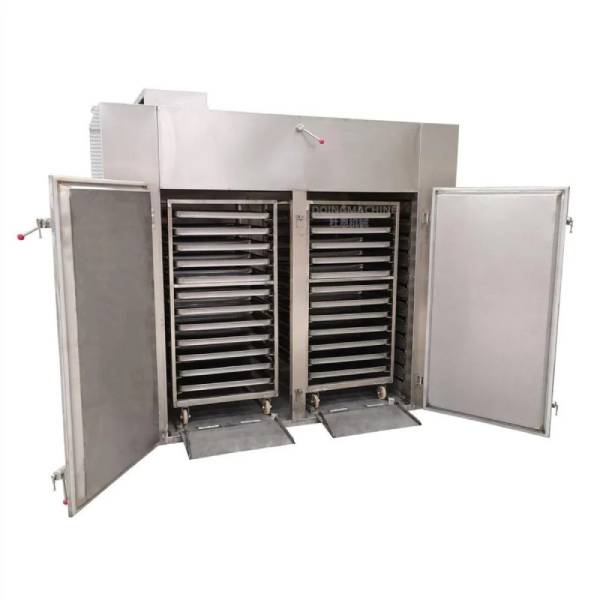

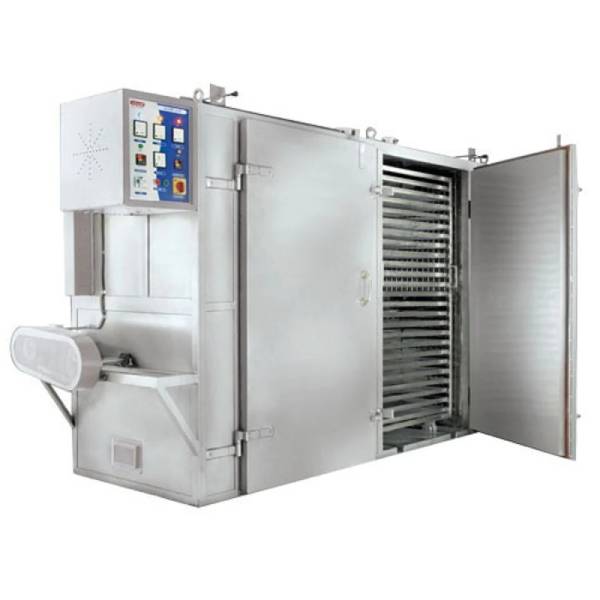

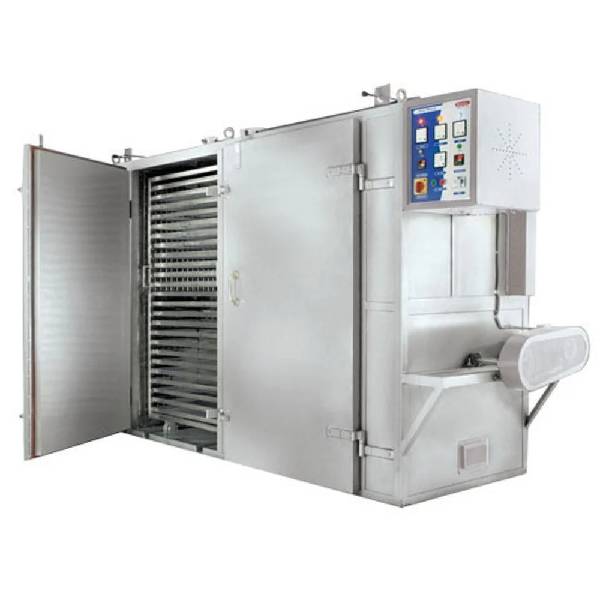

We are a renowned name that deals in manufacturing and supplying heavy-duty Tray Dryer designed for drying various types of products. It appears as a sturdy cabinet provided with multiple shelves on which trays carrying the materials to be dried are placed. The materials are placed for drying. The trays used within this drying chamber have a perforated design and are manufactured by using top-grade mild steel that provides high rigidity and strength. It is also provided with an electrically powered drying system that helps to raise the temperature of the hot circulating within the chamber to ensure efficient and controlled drying.

Special Features

  • Electrical or Steam or thermic fluid heating system available.
  • Temperature controlled by thermostat provided with the unit.
  • Electrical control panel mounted on the upper body.

Uses of Tray Dryer & Vaccum Tray Dryer Machine

Tray Dryers are ideally suitable for drying chilies, spices, papads, potato chips, onions, fish, garlic, grapes, cashew nuts, confectionery, macaroni, wood etc. It is also for used for drying pharmaceuticals, chemicals, powders, granules, plastic granules etc. Heating is either by electric or steam or both combined.
