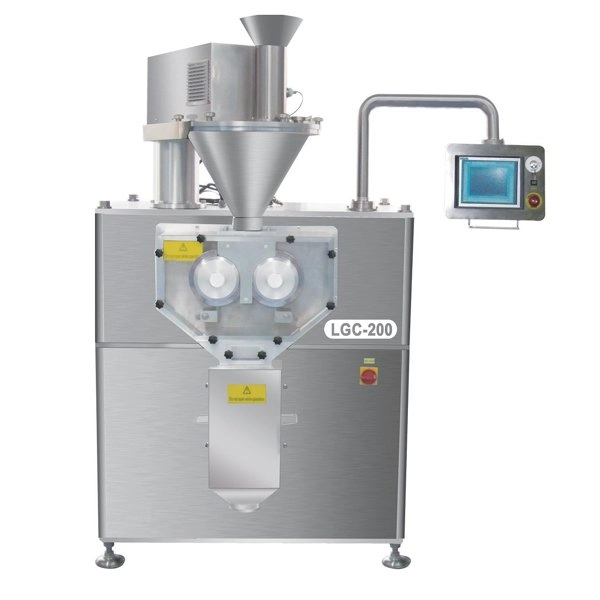

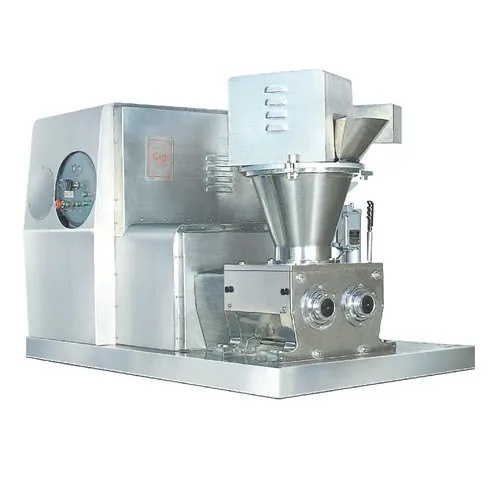

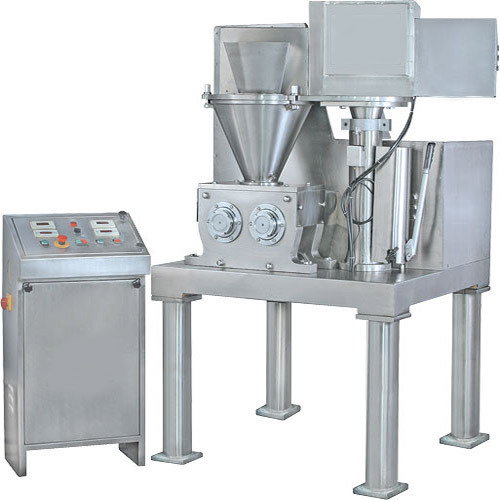

Roll Compactor Machine

Product Details:

Product Type: Roll Compactor Machine

General Use: Pharmaceutical Industry

Material: Stainless Steel

Capacity: 150-400Kgs/Hr

Roll Compactor Machine Price

Model APM-RC-200/100

Minimum Order Quantity 1 Set

Voltage 440V

Machine Specification

Control Mode Automatic

MaterialStainless Steel


Roll Compactor Trade Information

Supply Ability1 Set Per Day

Delivery Time 1-8 Week

Packaging DetailsStandard

Main Domestic MarketAll India

Machine Information

Name Values
Roll Diameter 200mm
Type of Rolls SS 316 fixed type
Roll Drive Motor 7.5 HP
Name Values
Roll Speed 5 - 20 RPM
Feed Screw Drive Motor 2 HP
Feeder Motor 3HP/1440RPM/3 Ph

Product Description

Roll Compactor Machine or roller compactor is the cGMP complied mini powder granulator for dry granulation process. Compactor forces powders between two counter rotating rollers & press fine powders in a solid sheets, called chips or flakes. Roll Compactor has a very compact design & is available in plain, water jacketed & flameproof options. Entire covers are designed to acquire dust-free operation. Roll compactor provide optimized granulated material to improve down-flow characteristics and succeeding maximized tablet making efficiency. The roller compactor machine is fully contained, wash-in-place capable and scaleable from lab to production.

Special Features

  • Feed screw is step-lessly driven through variable frequency drive.
  • Water Jacketing arrangement (optional).
  • Electrical interlocking between main roll drive and feed screw drive.
  • Hydraulic Power Pack system (optional).

Uses of Roll Compactor Machine

Roller compaction is a dry granulation process used in the pharmaceutical industry to create drug granules with suitable densification, drug content uniformity and powder flowability for manufacturing solid dosage forms such as tablets and capsules.
