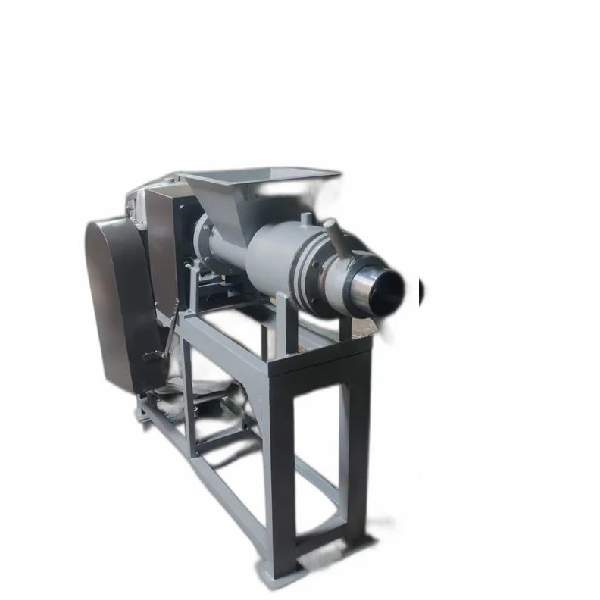

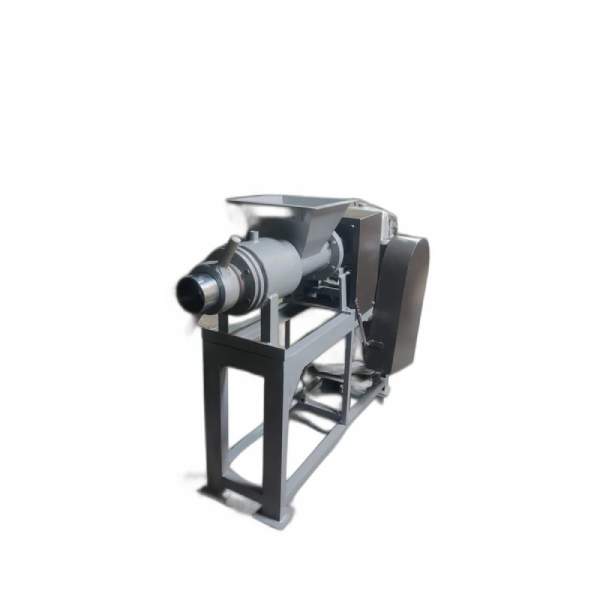

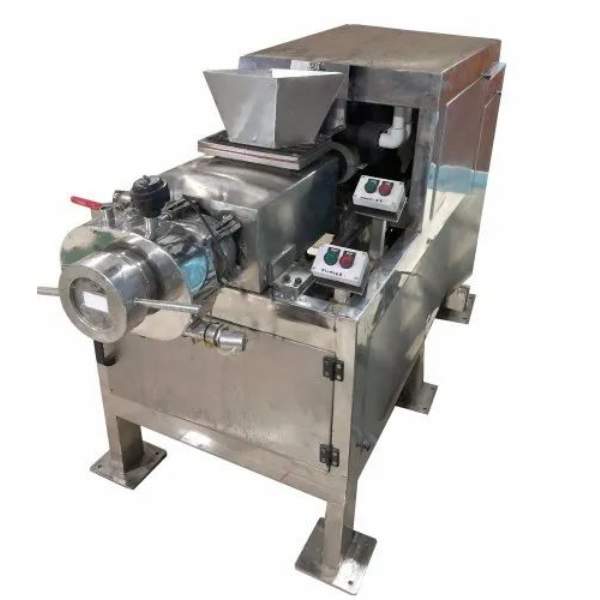

Plodder Machine

Product Details:

Product Typeplodder Machine

General Use Pharmaceutical Industry

Material Stainless Steel

Capacity10 Ton Per Day

Machine Description

Model single/Duplex Vacuum Plodder Machine

Size 5",6 and 8" inch Worm Dia

Model M.S or S.S

Duplex Vacuum Plodder

Power Consumption30 HP

Production Capacity500 kg/ hr

Voltage3 Phase

Single Worm Duplex Plodder

Production Capacity500-1000 kg per hour


Screw Diameter(mm)200

Product Description

After the Mixture Machine the mixed Masss in passed in through this Machine Where Matiriels is extruded into desined shape of sope.

Special Features

  • Top stage known as pre-plodder,extrudes the soap as noodles/pellets.
  • Soap in the vacuum chamber is plodded out as compact bar.
  • Noodle from the pre plodder is passed to the vacuum chamber.
  • Vacuum chamber is fitted with wing nuts for easy open/close and view glasses.
