Products / Pharma & Ayurvedic / Capsule Line / Capsule Loader Machine

Capsule Loader Machine

Product Details:

Product Type Capsule Loader Machine

General Use Pharmaceutical Industry

Material Stainless Steel

Production Output20000 Capsules / Hr

Machine Description

Model NULL

Minimum Order Quantity 1 Set

Capacity 20000 Capsules / Hr

Machine Specification


Capsule Combinations00, 0, 1, 2, 3 and 4

Sequence of holes25 x 12 = 300

Size Information

Overall Dimension630mm X 430mm X 780mm Approx

Weight120 KG Approx

Power Voltage220 Volts, Single Phase, 50 Hertz

Loading TraysOne

Product Description

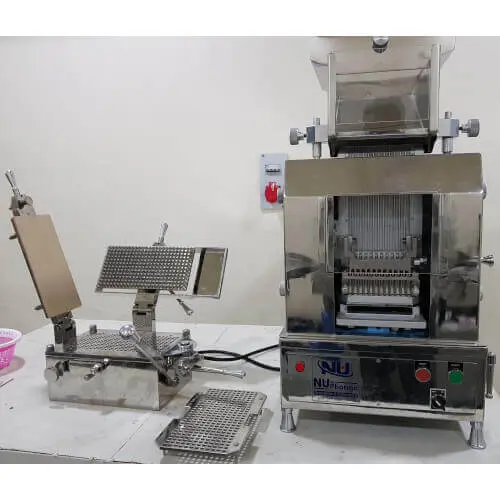

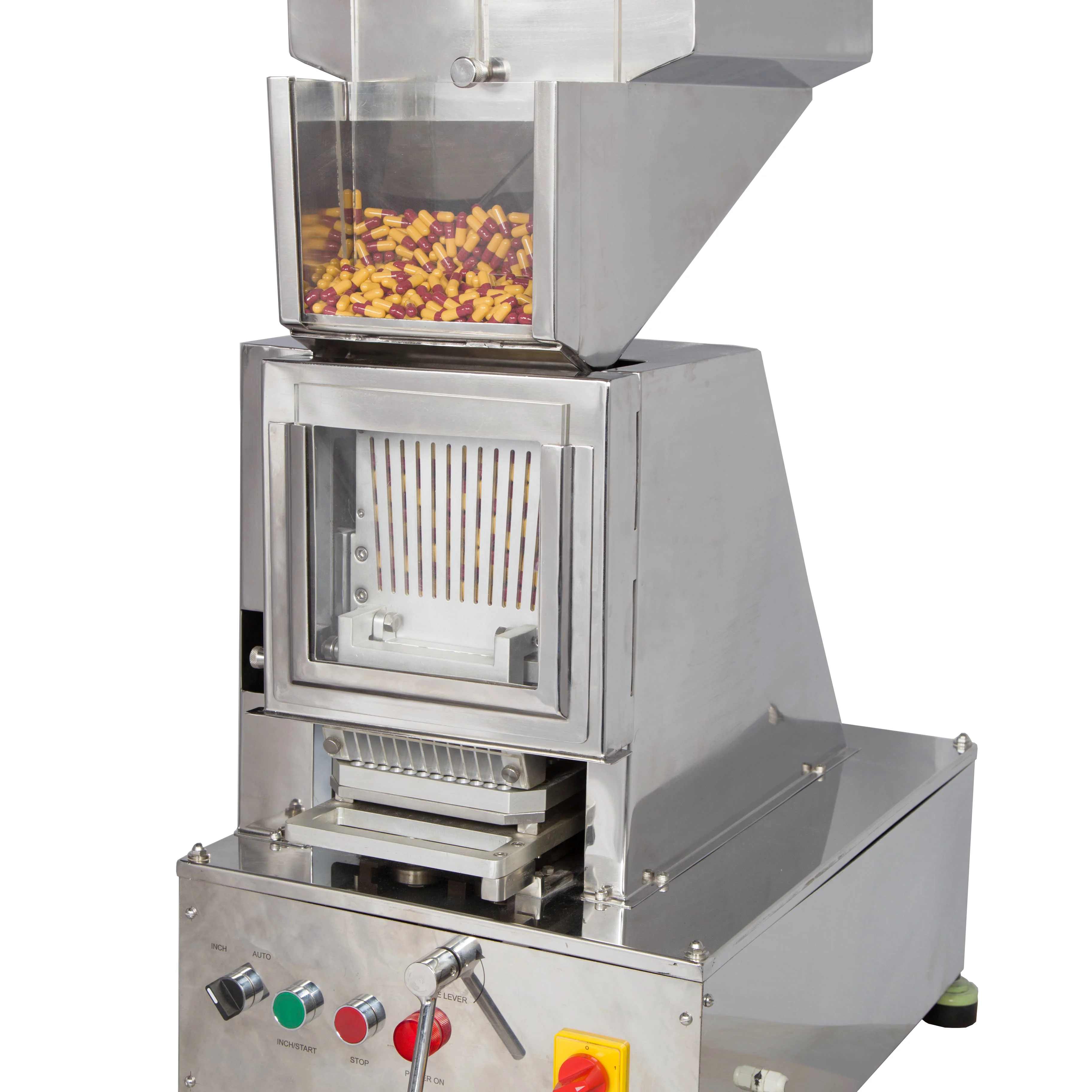

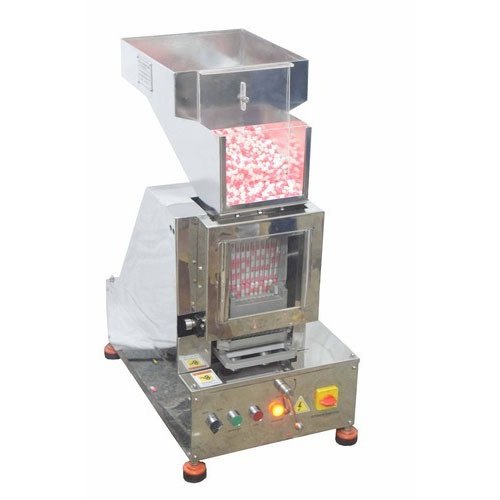

The Automatic Capsule Loader automatically puts capsules into the loading tray of the Capsule Filling Machine. The machine is small and takes up little room. It produces more while maintaining a greater level of precision.Loader automatically loads empty capsules in the loading plate for manually operated capsule filling machines, therefore instead of taking 5 minutes to hand load empty capsules in 300 holes loading plate, this machine does it in 30 seconds. A Capsule Loader is used to fill loading plates of 2 – 3 capsule filling machines. Thus, on the one hand, enhance productivity while reducing the number of operators and equipment costs on the other.

Special Features

  • Compact model complies as per GMP requirements.
  • 220V, Single Phase power voltage, so no special connection required.
  • Low investment higher production output.
  • Simple to operate, can be handled by semi-skilled person.
  • Machine stop automatically after loading is complete.
